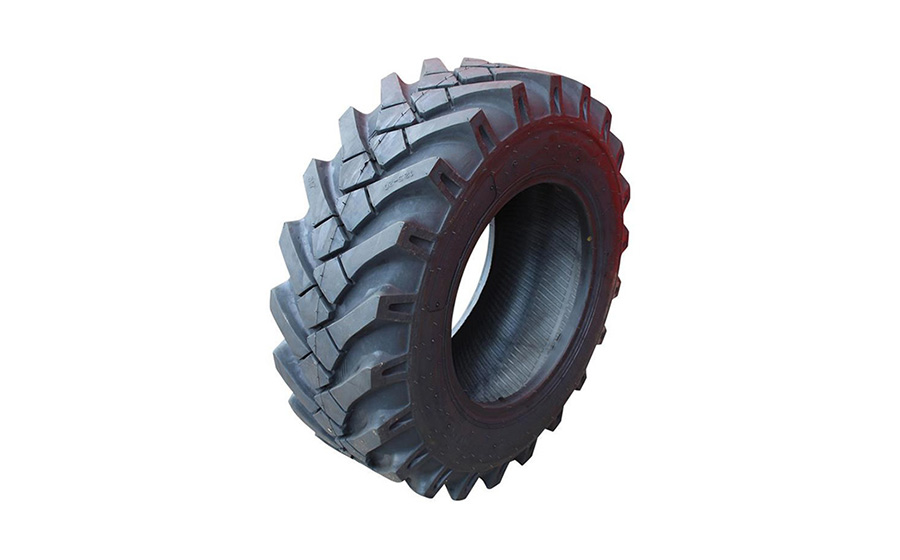

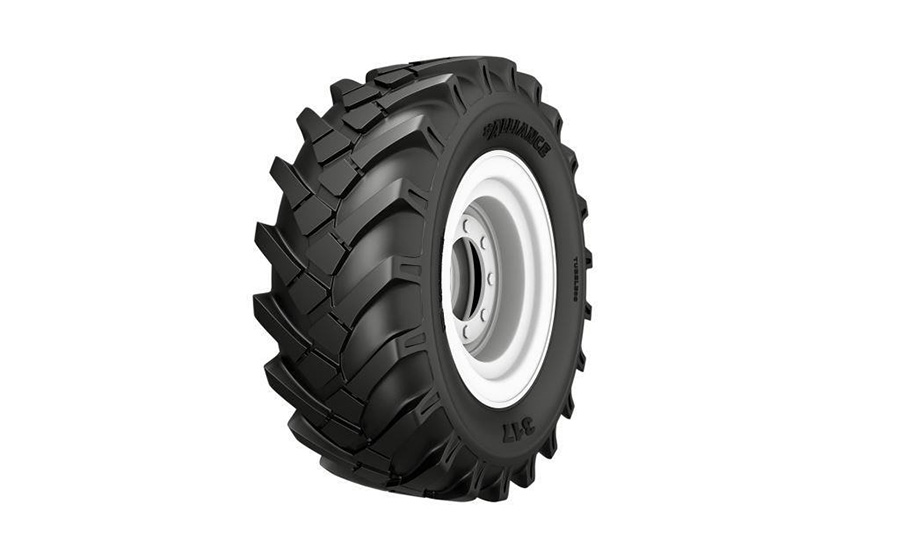

317 MPT

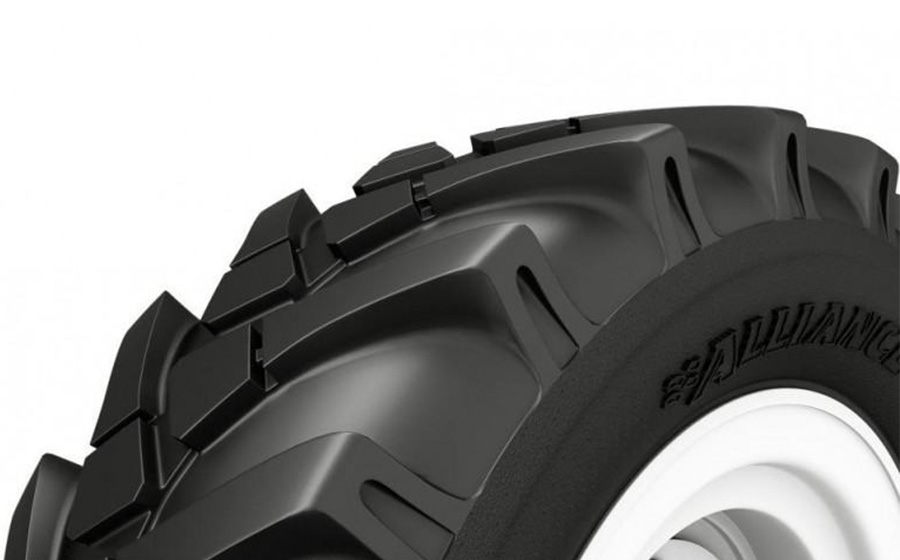

Alliance 317 tire is designed for applications that require high traction. It is engineered to provide the best performance for on and off road services in tough weather conditions. The tire provides excellent traction to drive wheels and has a strong nylon carcass construction.
IDR 0

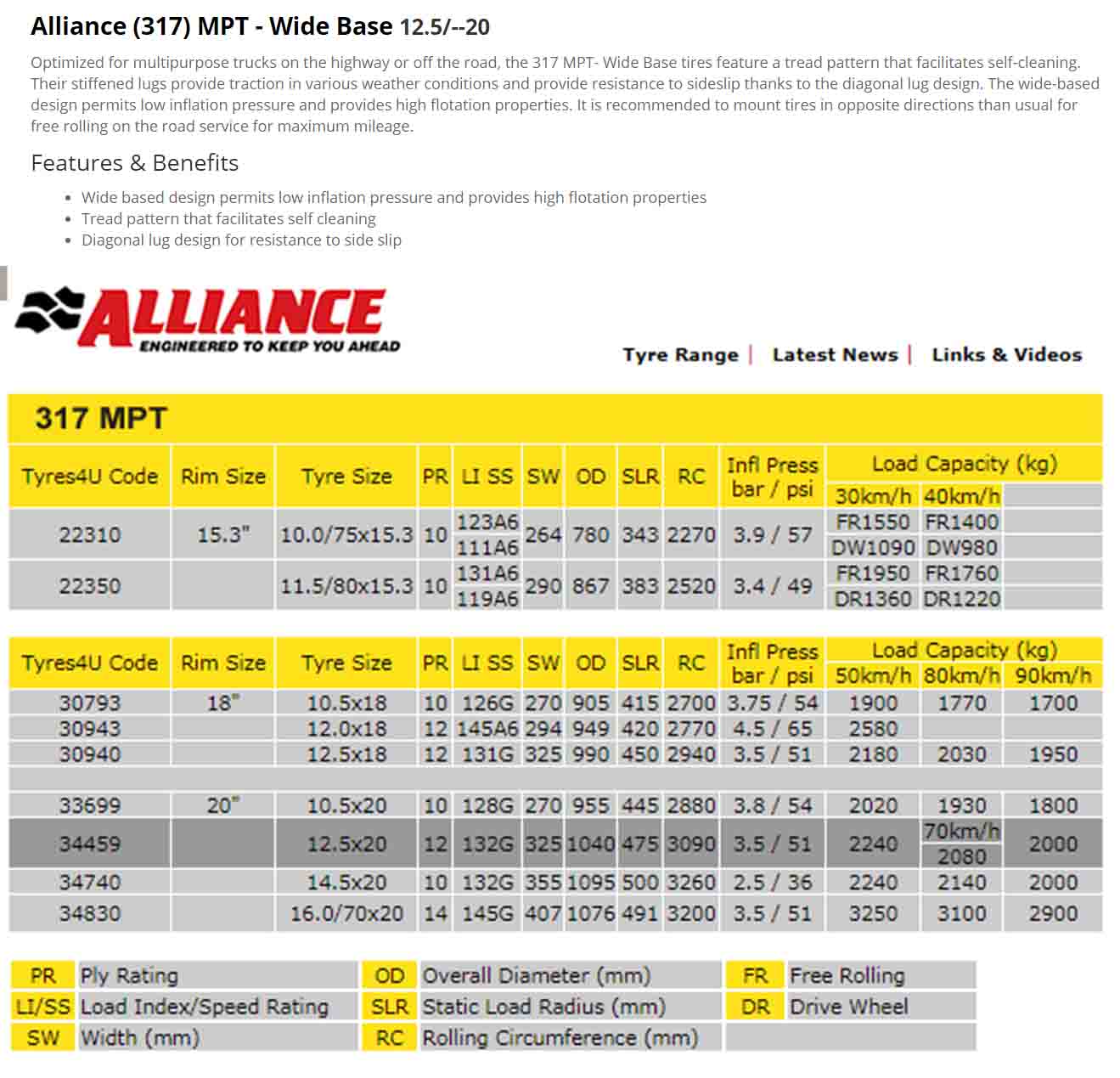

| Technical Specification | |
|---|---|
| Size | 12.5-20MPT |
| Rim | 11 |
| Unloaded Dimension | SW mm 325 | OD mm 1040 |
| Loaded Static radius | 475 |
| Rolling Circumference | 3090 |
| Load Index PR Symbols | 12PR | 140B |
| Inflation Pressure bar | 3.7 | 4 |
| Technical Specification | |
|---|---|
| Size | 12.5-20MPT |
